| 建议零售价 | ？？198000.00 |
|---|---|
| 加工定制 | 是 |
| 功能 | 充填,打包,封口,计量,条码识别、打印,贴标签,包装容器成型,打码、喷码 |
| 电压 | 220（V） |
| 功率 | 6（Kw） |
| 包装膜宽 | 520（mm） |
| 制成袋尺寸 | 50--400（mm） |
| 包装速度 | 10--60（袋/分钟） |
| 重量 | 1200（kg） |
| 外形尺寸 | L)1500mm*(W)1170mm*(H)1500mm（mm） |
| 包装材料 | 薄膜 |
| 包装类型 | 箱 |
| 自动化程度 | 全自动 |
| 适用对象 | 谷物 |
| 适用行业 | 餐饮,食品,化工,家纺,日化,玩具,五金、机械,礼品、工艺品 |
| 物料类型 | 固体 |
| 售后服务 | 整机一年保修 |
| 品牌 | 锦**nTian |
| 型号 | JT-520W |
JT-720 / JT-520大型立式全自动包装机
Stainless steel and mild steel painted machines for different requested. N
不锈钢和碳钢机型可选，满足多种需求
技术特点：
1．采用西门子彩色触摸屏和稳定可靠的双轴高精度输出的PLC控制、制袋、计量、充填、封合、打码、切袋一次性完成。
2．气路控制和电路控制电箱独立分离，噪音小，电路更稳定。
3．采用双皮带伺服拉膜：拉膜阻力少，包装袋成型好，更美观，皮带不易磨损。
4．固定式放膜机构，包装膜安装更简单、更容易。
5．包装袋的偏差调整只需在触摸屏上调整即可，操作简单。
6．整机采用封闭式机构，有效防止粉尘进入机器内部。
Technical characteristics
1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controled by the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine.
适用包装范围：

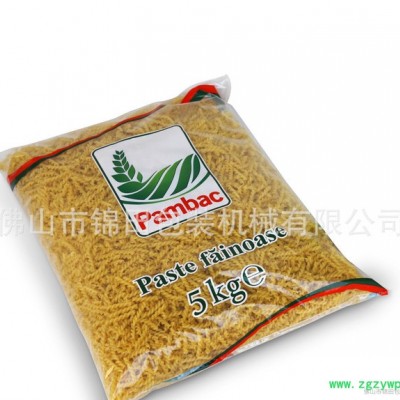

配合多种计量装置，可包装不同种类的物料;如休闲食品，果仁，爆米花，种子，砂糖，盐等颗粒、粉体或颗粒,粉末混合产品等。
Application
Suitable for many kinds of measuring equipments,and package different kinds of products ;such as puffy food, shrimp roll, peanut, popcorn, cornmeal, seed, sugar and salt etc. which shape is roll, slice and granule.
技术参数（Technical parameters）:
机型(Type) | JT-720 | JT-520 |
制袋长度(Bag length) | 100-480mm(L) | 80-400mm(L) |
制袋宽度(Bag width) | 180-350mm(W) | 60-250mm(W) |
薄膜**大宽度(Max width of roll film) | 720mm | 520mm |
包装速度(Packing speed) | 10-60bags/min | 10-600bags/min |
计量范围(Measuring range) | 6000ml(Max) | 3000ml(Max) |
气压(Air consumption) | 0.65Mpa | 0.65Mpa |
耗气量(Gas consumption) | 0.4m3/min | 0.4m3/min |
电压(Power voltage) | 220VAC/50HZ | 220VAC/50HZ |
功率(Power) | 5KW | 4KW |
外型尺寸(Dimension) | (L)1500mm*(W)1270mm*(H)1700mm | (L)1500mm*(W)1170mm*(H)1500mm |
机器重量(Net weight) | 900Kg | 800Kg |
